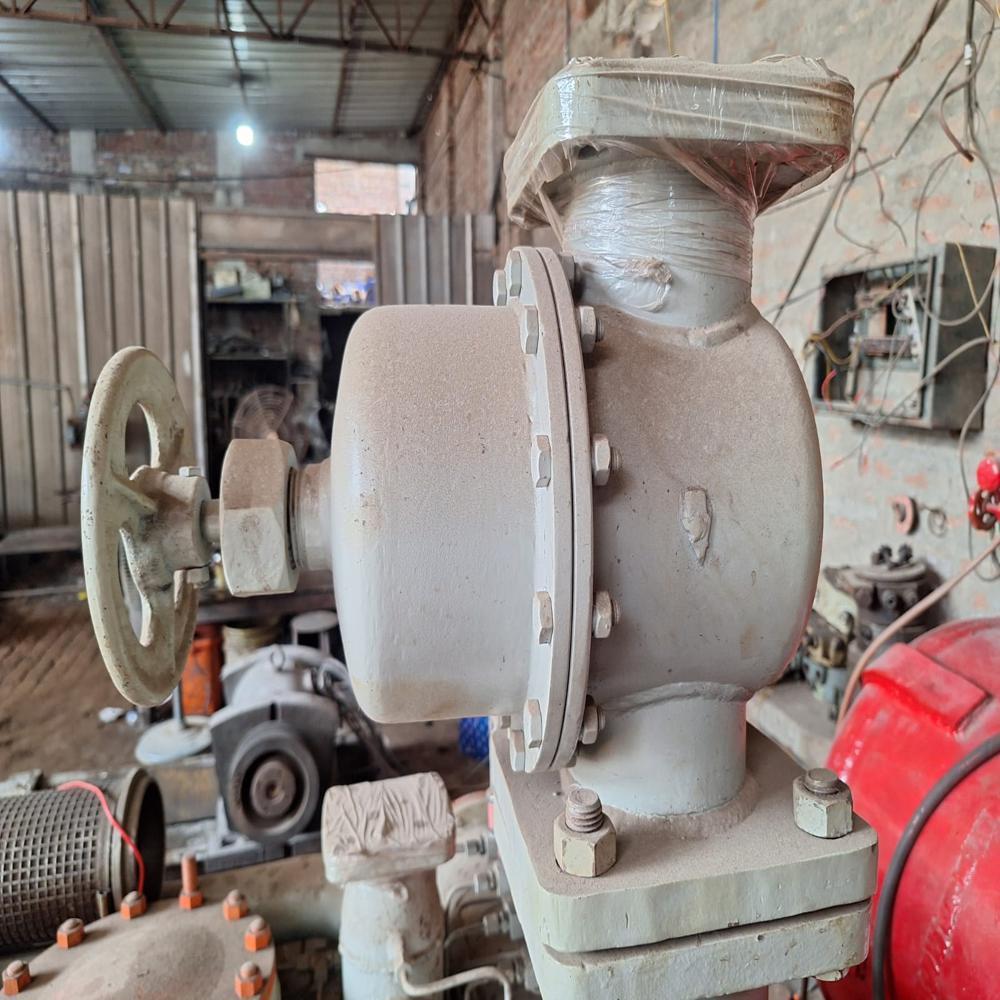

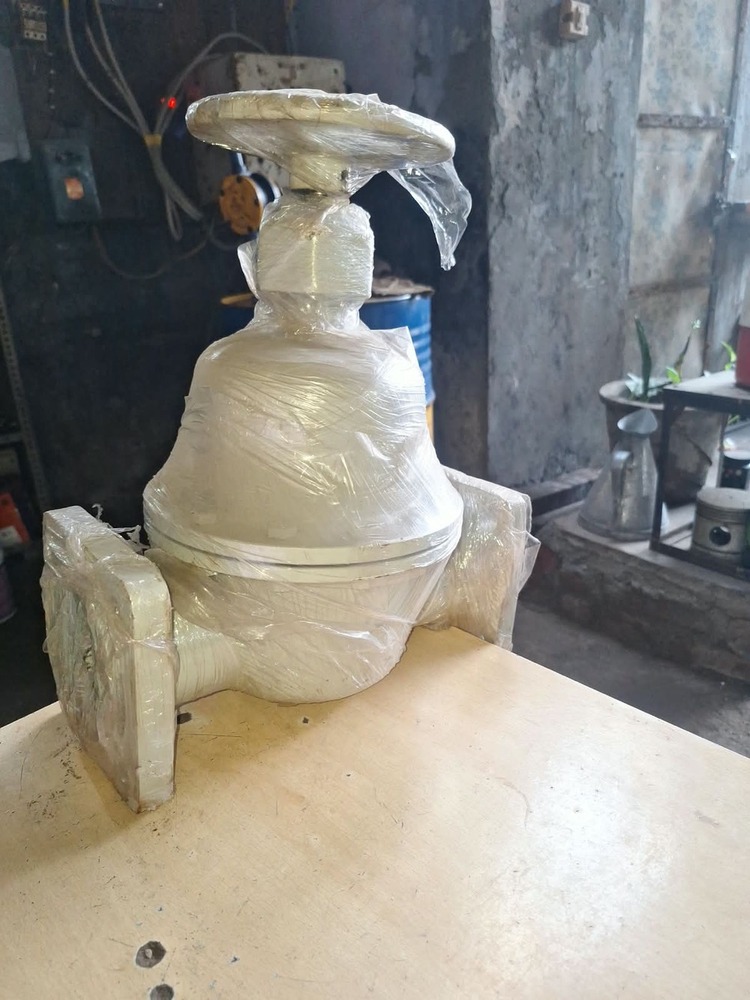

kc ammonia stop valve

kc ammonia stop valve Specification

Valve Size
As per system/design specification

Material
Cast steel or forged steel body

Valve Type
Handwheel operated globe valve

Control System
Manual

Connection Type
Flanged connection

Features
Corrosion resistant, heavy duty, leak-proof design

Structure
Bolted bonnet, flanged ends

Sealing
Metallic sealing

Application
Ammonia refrigeration systems

Type
Stop Valve

Power
Manual operation

Pressure
Up to 28 bar (approx.)

Media
Other

Port Size
Customizable (typically 1 to 8)

Temperature
Suitable for low temperature (-40C to +80C)

Disc
Metal plug

Gland Packing
Graphite or PTFE

Handwheel Material
Cast iron or steel

Body Test Pressure
Up to 42 bar

Operation Direction
Uni-directional flow control

Finish
Anti-corrosive paint/coating

Flange Standard
As per IS/ANSI/DIN

Leakage Class
Class VI (tight shut-off)

About kc ammonia stop valve

If by KC ammonia stop valve you mean the stop valve used in industrial ammonia refrigeration systems (often associated with KC/KCX compressor valve systems), an ammonia stop valve is a manual shut-off valve designed to isolate sections of an NH refrigeration plant for maintenance, safety, or system control. It is typically installed on liquid, suction, hot-gas, or discharge lines.

Typical features include:

Suitable for ammonia (R717) refrigeration service.
Welded or socket-welded connections to minimize leakage points.
Low pressure-drop flow path.
Operation across a wide temperature range (often around 40C to +150C or lower depending on design).
Available in globe or angle patterns.

If you're referring to a specific KC model, please provide:

Manufacturer name
Valve size (e.g., DN25, DN50)

Corrosion-Resistant Durability

With an anti-corrosive paint finish and robust steel construction, the KC Ammonia Stop Valve thrives in harsh environments common to industrial refrigeration systems. Metallic sealing and premium gland packing (graphite or PTFE) offers long-lasting leak protection. The Class VI tight shut-off ensures the system safety, even at low temperatures and high pressures.

Precision Flow Control

The valve supports uni-directional flow-essential for ammonia refrigeration. Manually operated and featuring a handwheel for smooth, precise control, it provides accurate isolation of media. Its metallic plug disc and bolted bonnet structure guarantee operational integrity over extended service cycles.

FAQ's of kc ammonia stop valve:

Q: How does the KC Ammonia Stop Valve maintain a tight seal in ammonia refrigeration systems?

A: The valve uses metallic sealing and Class VI shut-off standards, combined with advanced gland packing (graphite or PTFE), to ensure minimal leakage and reliable sealing, even under high pressure and low-temperature conditions.

Q: What are the main benefits of using this valve with ammonia and refrigerant gases?

A: This stop valve is designed specifically for ammonia and similar refrigerant gases, offering corrosion resistance, tight leak-proof performance, and the strength to handle pressures up to 28 bar, resulting in enhanced safety and reduced maintenance.

Q: Where can this valve be installed within a refrigeration system?

A: The KC Ammonia Stop Valve is typically installed at strategic isolation points within ammonia refrigeration circuits where precise manual flow control or safe system isolation is required. Its flanged, bolted construction allows for easy integration with pipelines adhering to IS, ANSI, or DIN standards.

Q: What is the process for operating and maintaining the valve?

A: Operation is manual via the cast iron or steel handwheel. Regular maintenance involves checking the tightness of the gland packing and inspecting the flanged connections for leaks, particularly after prolonged service or when operating at temperature/pressure extremes.

Q: When should this valve be selected over other valve types in industrial applications?

A: Choose the KC Ammonia Stop Valve when robust, leak-proof shut-off is essential, particularly under demanding pressure and temperature conditions with ammonia or similar gases. Its design is ideal for applications needing reliable, uni-directional manual control.

Q: What customization options are available for port and valve sizes?

A: Port sizes are customizable, typically ranging from 1 to 8 inches, while overall valve size and flange specification can be tailored according to the specific requirements and design standards of your refrigeration system.
